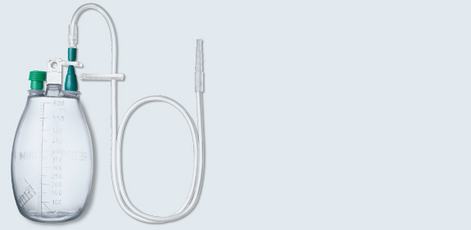

Redon OR-System
The OR-system is a pre-evacuated reservoir with connecting tube for post-operative high-vacuum Redon wound drainage and is suitable for initial placement during surgery.
Benefits
High initial vacuum
The Redon bottle has a high initial vacuum of max. 98,000 Pa.
Several system sizes
200 ml and 400 ml systems provide a 50 ml safety volume.
Redon connection tube
The tube with transparent universal Redon connector CH 06 - CH 18 for connection to the drain is pre-attached.
Product Details
- Plug connection or Luer-Lock connection
- Crystal-clear material for reliable qualitative assessment of secretions
- Rough and fine graduation for at-a-glance information about current fill levels
- Integrated vacuum indicator with min./max. indication
- Quick-release fasteners included
- Single packed, sterile
- Latex-free
- Redon bottle DEHP-free
Technical Data
- Bottle volume: 200 ml - 600 ml
Manufacturer
pfm medical mepro GmbH
Am Söterberg 4
66620 Nonnweiler-Otzenhausen, Germany
Ordering Information
| REF | Connection | Volume | PU |
| 20201 | Plug | 200ml | 40 |
| 20204 | Luer-Lock | 200ml | 40 |
| 20301 | Plug | 400ml | 40 |
| 20304 | Luer-Lock | 400ml | 40 |
| 20401 | Plug | 600ml | 30 |
| 20404 | Luer-Lock | 600ml | 30 |
