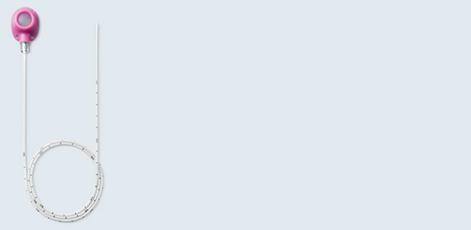

TitaJet™ Light II Contrast

Excellent plastic–titanium combination
The special combination of two materials provide light weight and high safety.

Suitable for high-pressure applications
The pressure resistance of the systems allows the application of certain substances with high pressure.

Safe identification
The radiopaque CT marking on the bottom of the port ensures safe identification as a high-pressure port.

Easy placement
The oval shape of the port makes it easy to insert into the prepared pocket.

MRI-conditional
Reduced artefact formation (up to 3.0T)

Connection mechanism
Click-connector for the simple and easy connection as well as secure and reliable fixation of catheter and port chamber.

• High pressure-resistant catheter made from polyurethane (PU)
• Radiopaque, length marked catheter
• Vessel-friendly atraumatic catheter tip
• Click-Connector for safe connection between catheter and port chamber
• Highly compressed silicone membrane for secure closing of septum and stable holding of puncturing needle
• Well-palpable septum for safe identification of thepuncture site
• Latex-, DEHP- and PVC-free

• Length of catheter: 750 mm
• Dimension: 32.0 mm (Ø base plate) × 13.0 mm (height)
• Septum diameter: 12.0 mm
• Weight: 7.8 g
• Residual volume chamber: 0.7 ml
• Puncuture frequency (non-coring 19-G needle): 1,000
• Pressure stability: up to max. 21 bar/300 psi with maximum flow rate of 5 ml/s

Set components

• 1 Port with CT marking
• 1 Catheter with atraumatic tip
• 2 Click-connectors
• 1 Rinsing needle
• 1 JetCan™ straight Huber needle (22 G, 25 mm)
• 1 Vein lifter
• Accessories for identification of the high-pressure port (bracelet (purple), patient ID-card, pendant for keyring)
• 1 Introducer kit* (peel-away sheath with dilator, guide wire 700 mm with J-tip, puncture needle)
• 1 Tunnelling needle
• 1 Patient ID-card

*Separate introducer kit available on request.
