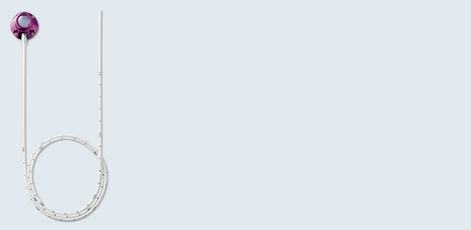

T-Port Low Profile Contrast

Titanium material of proven quality
The excellence material ensures a highly reliable usage.

Suitable for high-pressure applications
The pressure resistance of the system allows the application of certain substances with high pressure.

Safe identification
The radiopaque CT marking on the bottom of the port ensures safe identification as a high-pressure port.

Small dimension
Small version for more discreet placing of the port.

Connection mechanism
Click-connector for simple and easy connection as well as secure and reliable fixation of catheter and port chamber.

• High pressure-resistant catheter made from polyurethane (PU)
• Radiopaque, length marked catheter
• Vessel-friendly atraumatic catheter tip
• Click-Connector for safe connection between catheter and port chamber
• Highly compressed silicone membrane for secure closing of septum and secure holding of puncturing needle
• Well-palpable septum for safe identification of the puncture site
• Latex, DEHP and PVC free

• Length of catheter: 750 mm
• Dimension: 22.5 mm (Ø base plate) × 11.0 mm (height))
• Septum diameter: 9.0 mm
• Weight: 8.0 g
• Residual volume chamber: 0.4 ml
• Puncuture frequency (non-coring 19-G needle): 600
• Pressure stability: up to max. 21 bar/300 psi with maximum flow rate of 5 ml/s

Set components

• 1 Port with CT marking
• 1 Catheter with atraumatic tip
• 2 Click-connectors
• 1 Rinsing needle
• 1 JetCan™ straight Huber needle (22 G, 25 mm)
• 1 Vein lifter
• 1 purple bracelet for identification of high-pressure port
• 1 Introducer kit* (peel-away sheath with dilator, guide wire 700 mm with J-tip, puncture needle)
• 1 Tunnelling needle
• 1 Patient ID-card

 *Separate introducer kit available on request.
