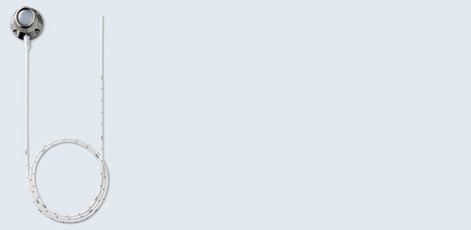

T-Port

Titanium material of proven quality
The excellence material ensures a highly reliable usage.

Connection mechanism
Click-connector for simple and easy connection as well as safe and reliable fixation of catheter and port chamber.

• Catheter made of polyurethane (PU) or silicone
• Radiopaque, length marked catheter
• Vessel-friendly atraumatic catheter tip
• Click-Connector for safe connection between catheter and port chamber
• Highly compressed silicone membrane for secure closing of septum and stable holding of puncturing needle
• Well-palpable septum for safe identification of thepuncture site
• Latex-, DEHP- and PVC-free

• Length of catheter: 750 mm
• Dimension: 27.0 mm (Ø base plate) × 13.0 mm (height)
• Septum diameter: 12.0 mm
• Weight: 14 g
• Residual volume chamber: 0.8 ml
• Puncture frequency (non-coring 19-G needle): 1,000

Set components

• 1 Port
• 1 Catheter with atraumatic tip
• 2 Click-connectors
• 1 Rinsing needle
• 1 JetCan™ straight Huber needle (22 G, 25 mm)
• 1 JetCan™ curved Huber needle, with extension (22 G, 25 mm)
• 1 Vein lifter
• 1 Syringe 10 ml
• 1 Introducer kit* (peel-away sheath with dilator, guide wire 700 mm with J-tip, puncture needle)
• 1 Patient ID-card

*Separate introducer kit available on request.
