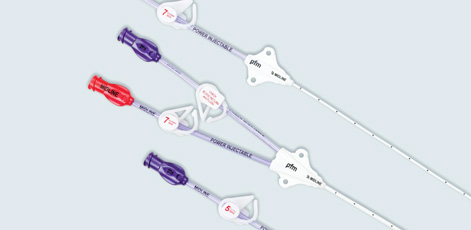

primeMIDLINE®
The power Injectable primeMIDLINE® catheter is designed to provide reliable peripheral access to the venous system. The primeMIDLINE® catheter combines soft polyurethane material and a low-profile luer hub for patient comfort. All lumens are power injectable to eliminate the need to select the appropriate lumen and minimize interruption of work flow. The primeMIDLINE® catheter offers the only high flow power injectable 3F midline catheter rated 5ml/sec.
Benefits
Soft Polyurethane Material
Body softness of the material to minimise risk of damage to the inner vessel wall and provide easier insertion of the device.
High Injection Rates
Provides optimal imaging for contrast studies. 5ml/sec for 3F Single Lumen Catheter and 7ml/sec for 4F and 5F single and Dual Lumen Catheters.
Low-Profile Luer Hubs
Lays flat for patient comfort under occlusive dressings, allows for easier grasping and twisting when changing connections and resists cracking and deformation.
3F High Performance Offering
Accommodates smaller vessels and minimises thrombotic risks. Able to achieve high flow performance at 5ml/sec.
True to Size Catheter
With no taper at the Distal End.
Configurations
Set Components
- Midline Catheter
- Tuohy Borst Side port with Pre-Loaded Stylet
- Safety Introducer Needle 21G x 7cm with Echo Tip
- Guidewire 45cm
- Tearaway Introducer
- Syringe 10cc
- Safety Scalpel
- Tape Measure
- Neutral Needleless Valve
- Statlock® Plus Securement Device
Ordering Information
| REF | Lumens | Size | Length | Lumen Gauge | Max CT Rate | Max Pressure | PU |
|---|---|---|---|---|---|---|---|
| PFM3SML20P | 1 | 3F | 20cm | 19G | 5 | 300 psi | 5 |
| PFM4SML20P | 1 | 4F | 20cm | 18G | 7 | 300 psi | 5 |
| PFM5SML20P | 1 | 5F | 20cm | 17G | 7 | 300 psi | 5 |
| PFM5DML20P | 2 | 5F | 20cm | 18G | 7 | 300 psi | 5 |
